Build smarter, faster, and more efficiently with OwnTech’s modular, open-source power electronics ecosystem for energy systems, motor controllers, or battery-powered applications.
Rapid
prototyping
Modular
ecosystem
Streamlined Development Tools

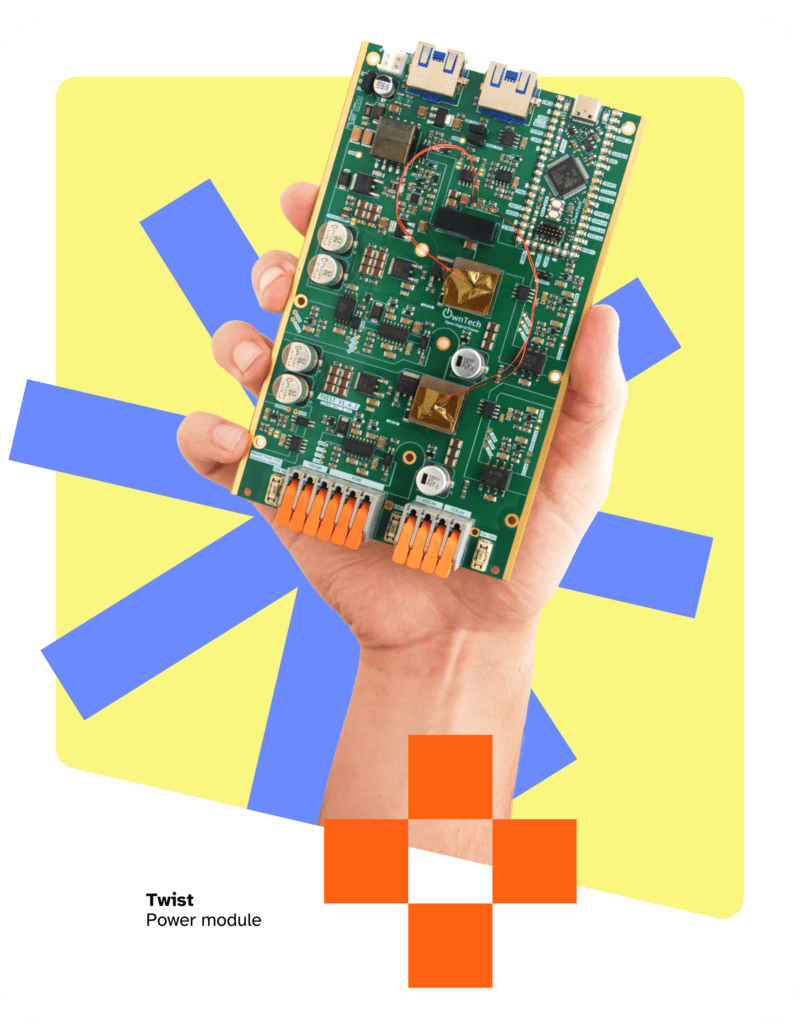

The super flexible – stack-able power module. A 300W DC power converter thought to cover a wide range of applications.

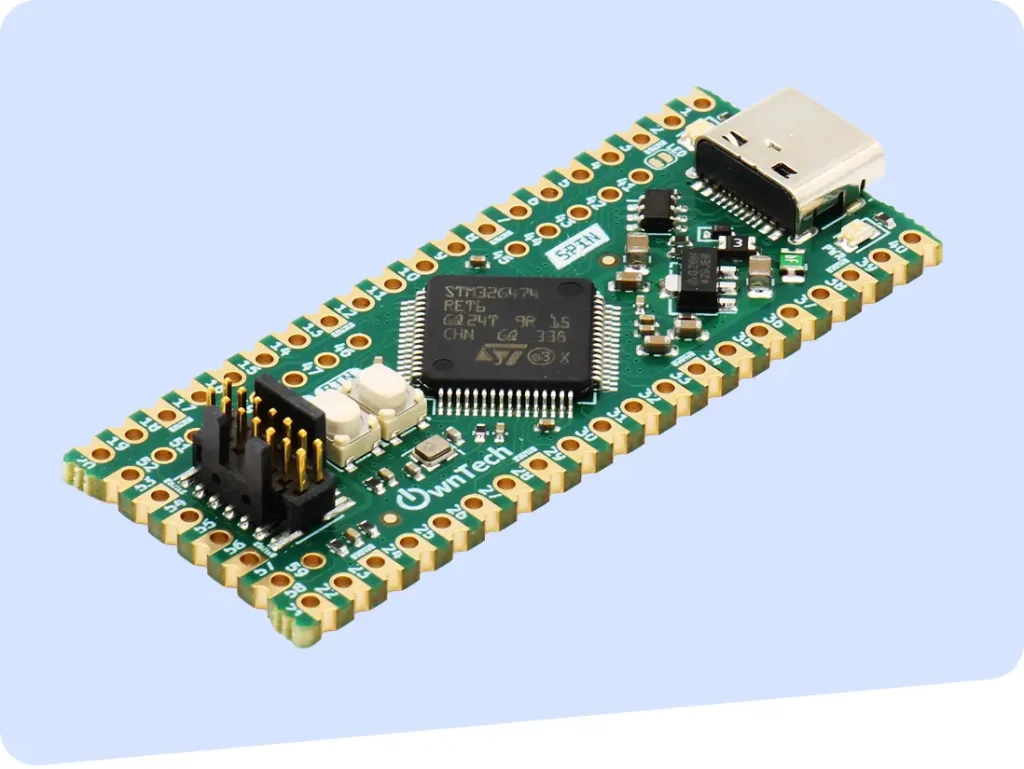

The powerful and simple micro-controller for power electronics.
Blazing fast specialized controller for your application.

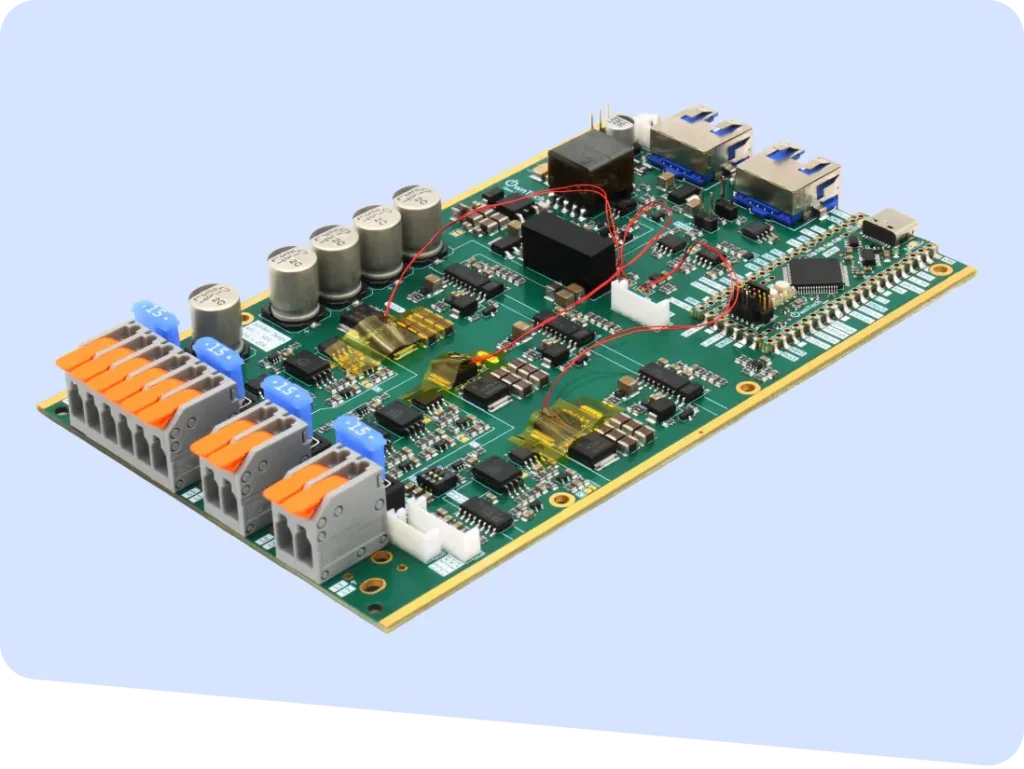

The 3-phase inverter solution to drive any motor. A 1kW three-phase inverter capable of driving any electric motor.

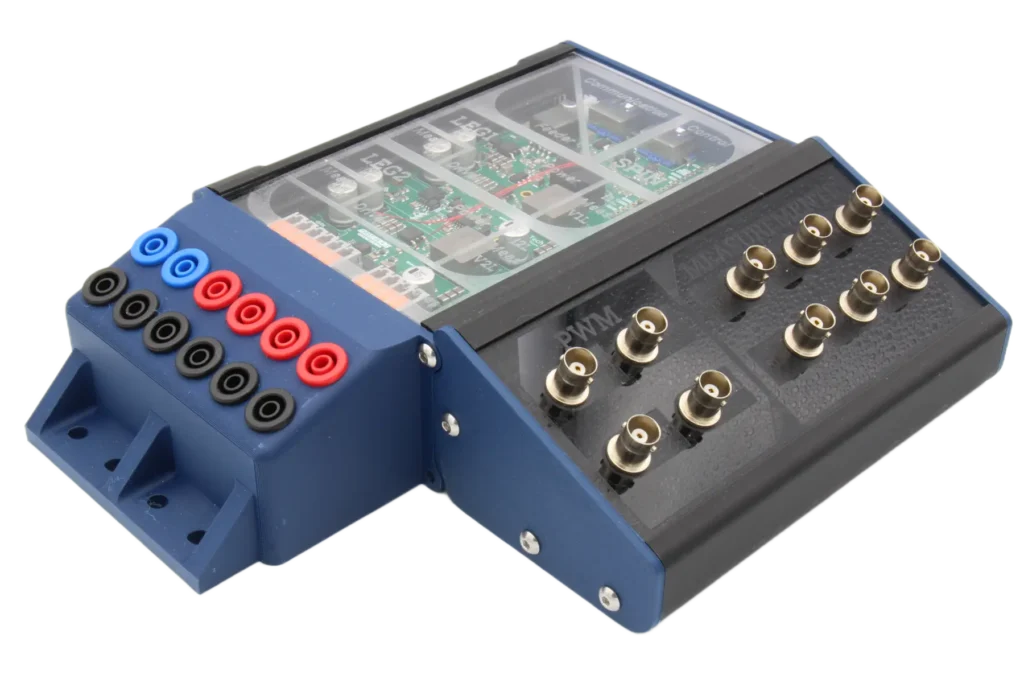

From zero to hero, empower your students with this learning by doing kit – tons of ressources to build your teachings on.

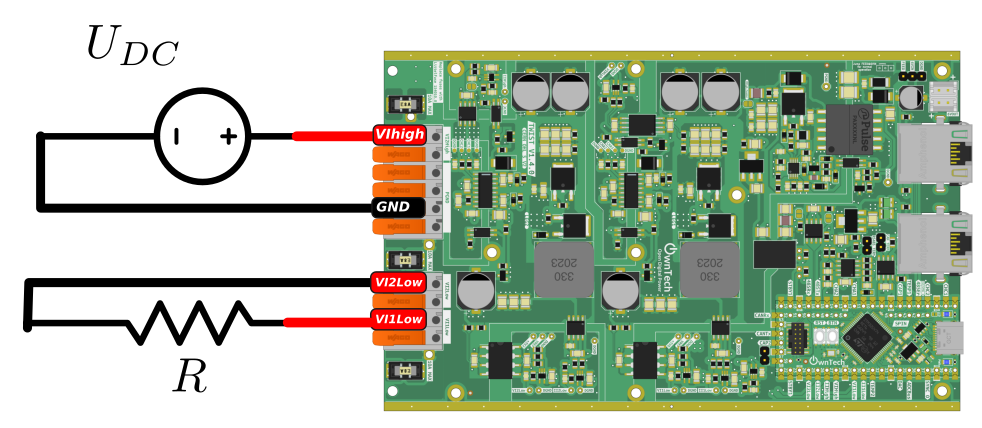

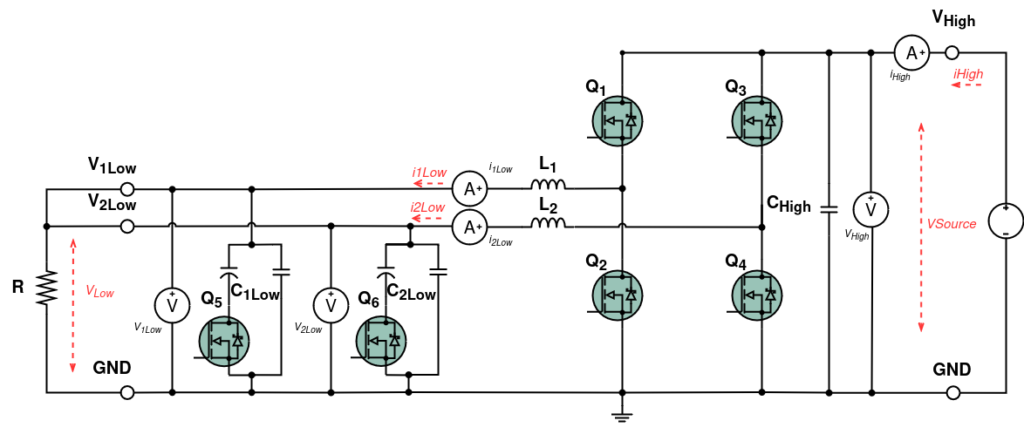

Use the twist board to create an AC voltage sine-wave with 23VRMS in this example.
From any 40VDC source, connect a 30Ω load.

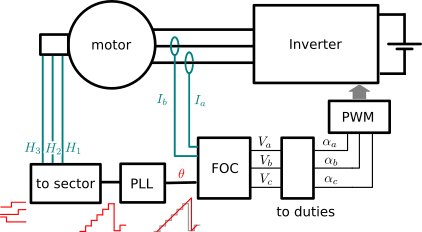

Use the ownverter board to drive a permanent magnet motor using its hall effect sensors.
The hall effect sensors are use to drive a field oriented control algorithm. You can implement more advanced control systems from it.
Use the twist to connect a DC source to any compatible load.
From any off the shelf lab supply, you can deliver power to your target load. In this example you can drive it as a buck (step down) converter.

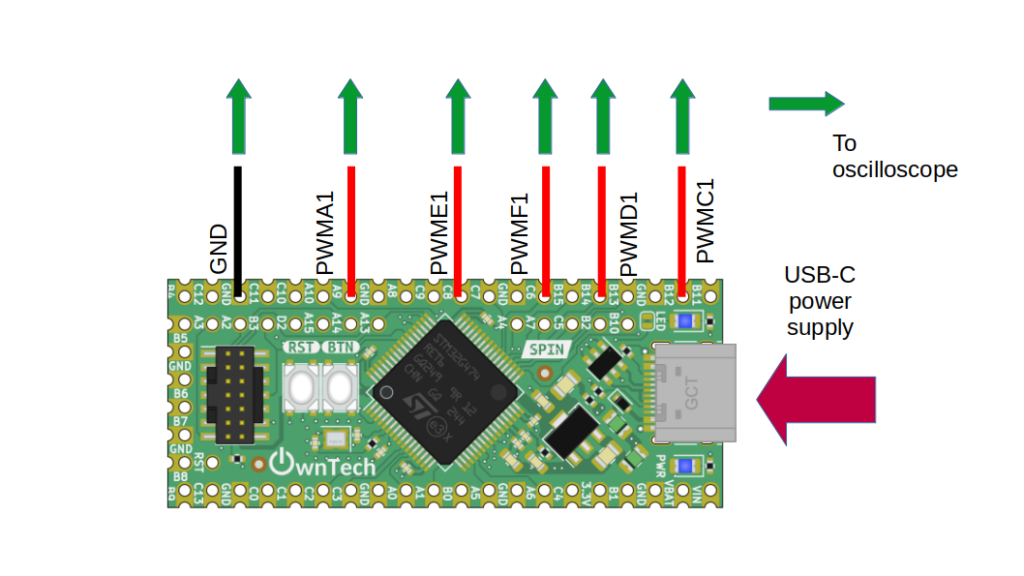

Use the spin board to generate up to 5 (five) pairs of high resolution (180ps) PWM signals.
Connect the SPIN board to your USB and upload the code. You can set dead time, phase shift, frequency and duty cycle.
Avec des exemples comme la modulation de l’énergie pour la mobilité ou la maximisation de la production d’énergies renouvelables, les etudiants s’engagent plus taclement et developpent des competences complexes plus rapidement.
Noémi Lanciotti
PRAG en GEII, IUT d’EvIy
