SPIN
Power Controller

Open source. Easy to use. Multi-function.

Control your power converter in minutes !

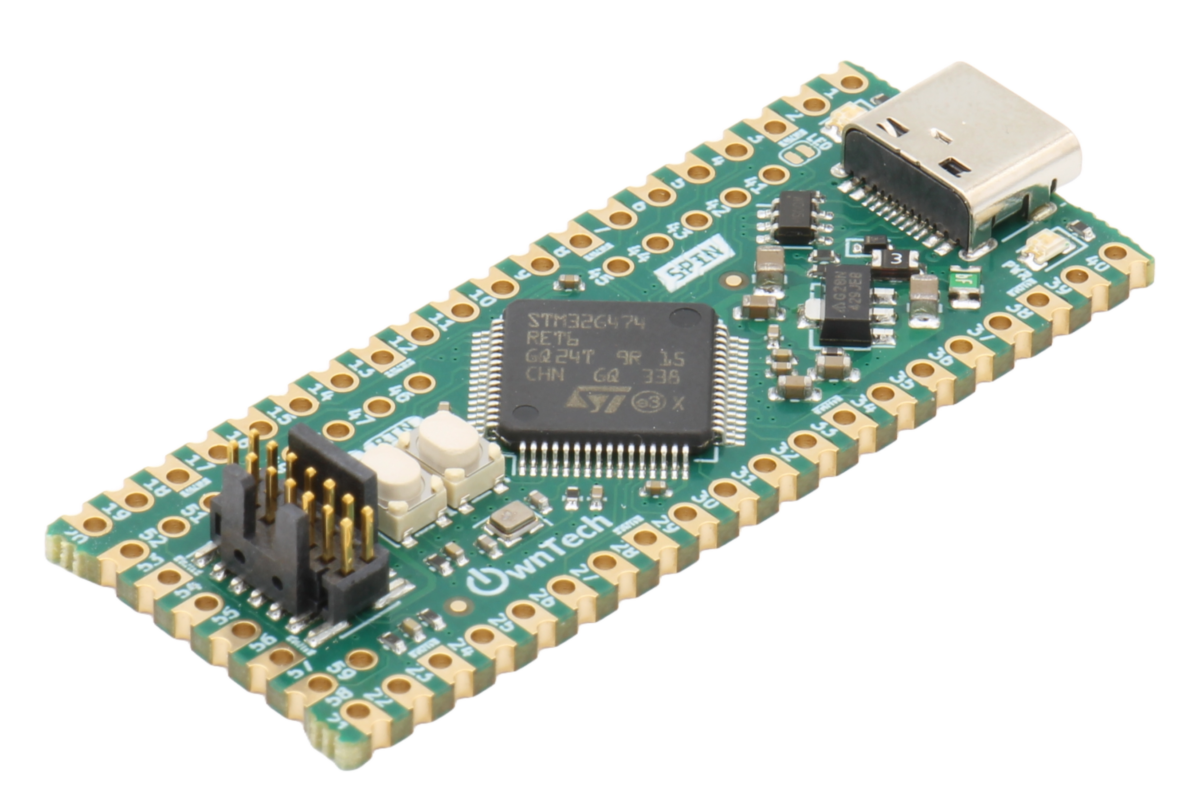

SPIN Control Board is a compact and powerful open-source controller designed for rapid development of power electronics applications. It enables high-resolution PWM generation and fast analog acquisition, making it ideal for motor drives, DC/DC converters, and experimental platforms.

Microcontroller	STM32G474RE
PWM Outputs	10 channels
Analog inputs (ADC)	24 channels, 18 HRTIM triggered
Digital I/O	42
Communication Interfaces	Native USB-C, I2C, SPI, CANBus
Synchronization	10ns of sync between micro-controllers
Protection Mechanism	Hardware, Firmware and Software

Connect your USB

Download our code from github

Drive your power

Simple to use

Native USB support
OwnPlot monitor your application
Debug friendly
Usable with Matlab and Visual Studio Code

Real Time advanced control laws

Configurable Control Frequency.
Voltage Mode
Peak Current mode

Seamless measurement acquisition

6 ADC channels 12bits ready to go!
60kHz acquisition rate
Accurate time measurement
Non blocking acquisition system

Fast and precise PWM

10 PWM signals ready to deploy !
Up to 55MHz PWM frequency
Up to 184ps temporal resolution
Center-aligned modulation support
Advanced phase shifting options
Dead-time support

An open-source philosophy

Free to use, developed by a community of makers.
Challenging ongoing project, new features and improvements are released regularly.
Join us in the development process!
